The flow of this system is shown in Figure 3. Like this figure, the work procedure is accumulated to the database inside PC. The types of the object estimated on the characteristic point arrangement of the work target that was acquired from cameras and the information of the work item and work place for each types are drawn dynamically from database. Beside the prompting markers are superimposed on the target board in accordance with the camera tracking information of the characteristic point, the graphical instructions are given by the worker. The electric data gathered from measuring devices is inspected automatically and simultaneously. When the condition is filled, the instruction goes next.

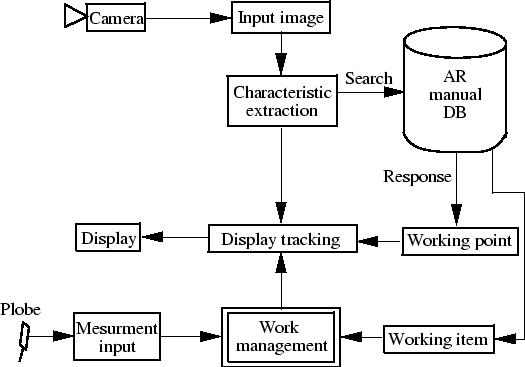

Figure 3: System processing flow
