Visual Person Identification Using Lip Motion Features (details)

目次

1. What is lip motion featuers?
2. Merit by using lip motion features
3. Flow of this method
4. Experimentation and Result

1．What is lip motion featuers?

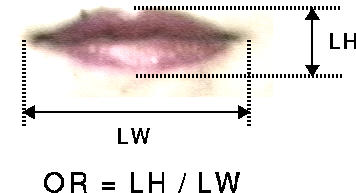

The testee is asked to make a specific utterance, and the image sequence containing the mouth motion is taken by a video camera. Lip motion is represented by the ratio (width vesus height of mouth) for each frame of the image sequence. The sequence of the opening ratio of the mouth is defined as "lip motion features".

2.Merit by using lip motion features

3.Flow of this method

1.Housing a cartoon image to dynamic frame grabber,DFM(Blay memory is 2GB)

2.Host Computer has one frame image(720x480) taken out.

3.Determination of the circumrectangle of the mouth

4.Extraction of lip motion features

5.Person identification by DP maching

1. Input image
2. Extraction of lip color area using HSL transform
3. Noise reduction using median filter
4. Expansion and shrink
5. Determination of the circumrectangle of the mouth

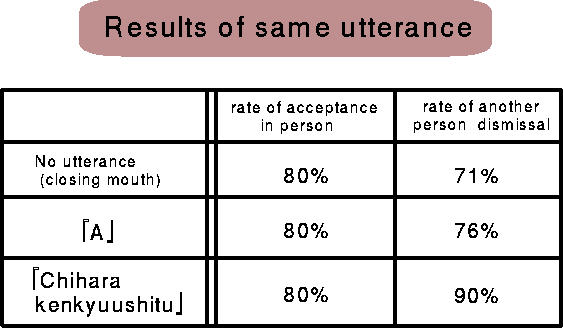

4.Experimentation and Result

Examing existence of individual variation of lip motion features by equipment.

The utterance pattern is

• No utterance （closing mouth）
• 『A』
• 『Chihara kenkyuushitu』

In case of different utterance,the experimental results shows the 100% rate of another person dismissal and the 95% rate of acceptance in person. In another case of same utterance, the experimental results shows that this method realizes good person identification when length of utterance is not short.
